MaksIT Unified Scheduler Service

A modern scheduler built on .NET 10 for running PowerShell scripts and console applications on Windows and Linux. Designed for system administrators — and also for those who feel like system administrators — who need a predictable, resilient, and secure background execution environment.

Tip: A graphical UScheduler UI is included for service registration, script scheduling, and log viewing — no command-line required.

See CONTRIBUTING.md for development setup, commit format, and release workflow.

---

Table of Contents

• MaksIT Unified Scheduler Service
  • Table of Contents
  • Scripts Examples
  • Features at a Glance
  • Installation
    • Install layout
    • Using CLI Commands
    • Using sc.exe (Windows)
    • Using systemd (Linux)
  • UScheduler UI
    • Getting Started
    • Settings View
    • Main View — Schedule Management
    • Service Logs View
    • Script Logs View
  • Configuration
    • Machine-wide settings.json
    • Path Resolution
    • Log Levels
    • PowerShell Scripts
    • Processes
  • How It Works
    • PowerShell Execution Parameters
    • Execution Model
  • Reusable Scheduler Module (SchedulerTemplate.psm1)
    • Exported Functions
    • Module Version
    • Example usage
  • Security
  • Logging
  • Testing
    • Running Tests
    • Code Coverage
    • Test Structure
  • Contact
  • License

Scripts Examples

Note: These examples are bundled with the release and copied to C:\MaksIT\Scripts on first install only if that folder or script is not already present. Existing files and script folders are never overwritten or merged. They are listed in the default configuration but disabled by default. To enable an example, set "Disabled": false in %ProgramData%\MaksIT\UScheduler\settings.json (or use the UI).

• Hyper-V Backup - Production-ready Hyper-V VM backup solution with scheduling and retention management
• Native-Sync - Production-ready file synchronization solution using pure PowerShell with no external dependencies
• File-Sync - FreeFileSync batch job execution
• Windows-Update - Production-ready Windows Update automation solution using pure PowerShell
• Scheduler Template Module

---

Features at a Glance

• .NET 10 Worker Service – clean, robust, stable.
• Fully portable – relocate between machines without reconfiguration.
• Windows and Linux – Windows SCM or systemd; Avalonia UI on both.
• Strongly typed configuration via machine-wide settings.json (ProgramData).
• Parallel execution – PowerShell scripts & executables run concurrently using RunspacePool and Task.WhenAll.
• Relative path support – script paths can be relative to C:\MaksIT\Scripts.
• Signature enforcement (AllSigned by default).
• Automatic restart-on-failure for supervised processes.
• Extensible logging (file + console + Windows EventLog).
• Built-in CLI for service management (--install, --uninstall, --start, --stop, --status).
• Reusable scheduling module: SchedulerTemplate.psm1.
• Thread-isolated architecture — individual failures do not affect others.

---

Installation

Install layout

Location	Purpose	Who can write
C:\Program Files\MaksIT\UScheduler	Worker (MaksIT.UScheduler.exe) and UI (MaksIT.UScheduler.UI.exe)	Administrators
C:\MaksIT\Scripts	Scheduled scripts (all users). Install copies bundled examples only into missing folders; existing scripts are never overwritten.	Users (after install)
C:\MaksIT\Logs	Service and script logs	Users (after install)
%ProgramData%\MaksIT\UScheduler\settings.json	Shared schedule configuration	Users (after install)
%AppData%\MaksIT\UScheduler\settings.json	Per-user UI prefs (service bin path override)	Current user

Registering the service (or MaksIT.UScheduler --prepare-data) creates the C:\MaksIT and ProgramData folders and grants the Users group modify rights, so the UI can stay unelevated.

Using CLI Commands

The executable includes built-in service management commands. Run as Administrator (Windows) or root (Linux):

# Install the service (auto-start / systemd enable)
MaksIT.UScheduler --install

# Start the service
MaksIT.UScheduler --start

# Check service status
MaksIT.UScheduler --status

# Stop the service
MaksIT.UScheduler --stop

# Uninstall the service
MaksIT.UScheduler --uninstall

# Show help
MaksIT.UScheduler --help

# Create data folders and ACLs without installing the service
MaksIT.UScheduler --prepare-data

On Windows the file is MaksIT.UScheduler.exe.

Command	Short	Description
--install	-i	Install the service (Windows SCM or systemd)
--uninstall	-u	Stop and remove the service
--start		Start the service
--stop		Stop the service
--status		Query service status
--prepare-data		Create C:\MaksIT\Scripts, C:\MaksIT\Logs, and shared settings (elevated)
--help	-h	Show help message

Note: Service management commands require administrator / root privileges.

Using sc.exe (Windows)

Alternatively, use Windows Service Control Manager directly:

sc.exe create "MaksIT.UScheduler" binPath= "C:\Path\To\MaksIT.UScheduler.exe" start= auto
sc.exe start "MaksIT.UScheduler"

Using systemd (Linux)

--install writes /etc/systemd/system/MaksIT.UScheduler.service (Type=notify) and enables the unit. You can also:

sudo systemctl enable --now MaksIT.UScheduler
sudo systemctl status MaksIT.UScheduler

To uninstall:

sc.exe stop "MaksIT.UScheduler"
sc.exe delete "MaksIT.UScheduler"

---

UScheduler UI

The UI is an Avalonia desktop app (Windows and Linux) for service registration, script schedules, and log viewing. Launch MaksIT.UScheduler.UI.exe from Program Files — it runs without administrator rights. Register, start, stop, and unregister prompt for elevation in place; the window stays open.

Getting Started

When you unpack the portable zip, launch MaksIT.UScheduler.UI.exe. GitHub releases also ship a Windows setup exe (installs worker + UI to C:\Program Files\MaksIT\UScheduler) and a Flatpak of the UI.

Note: Service management (register, start, stop, unregister) prompts for administrator approval without restarting the UI. Schedule edits go to %ProgramData%\MaksIT\UScheduler\settings.json and do not require elevation after the first install.

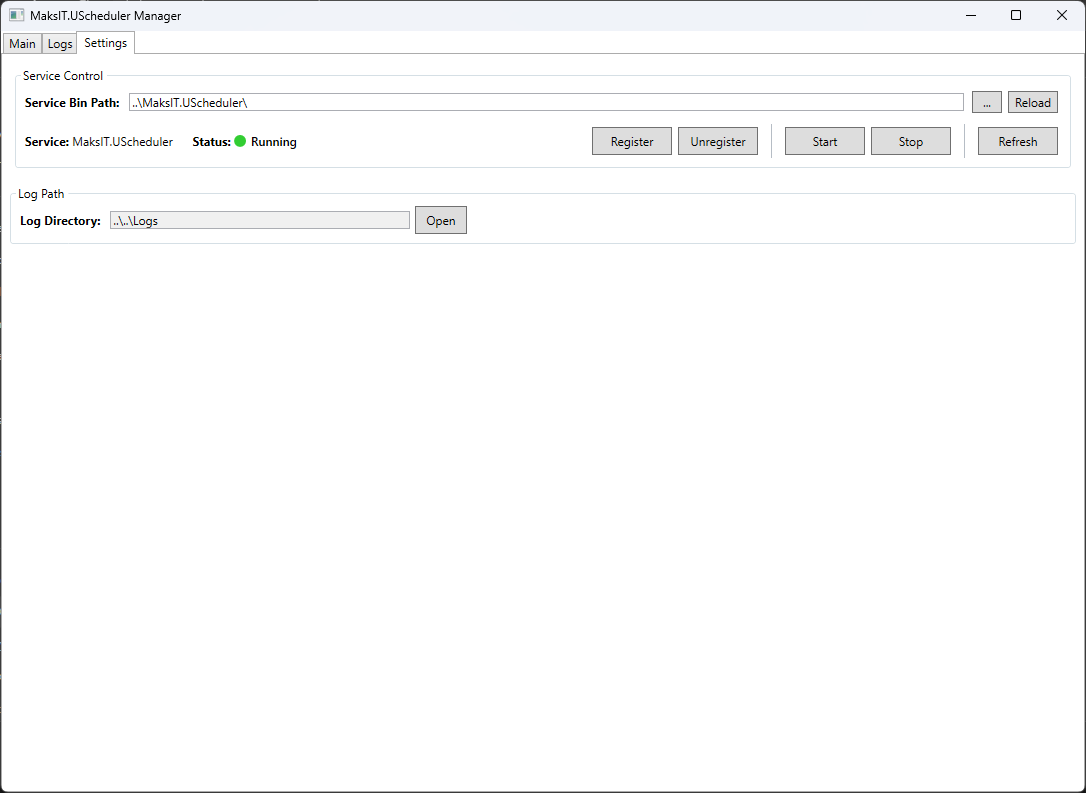

Settings View

The Settings view is your starting point for configuring UScheduler.

Feature	Description
Service Bin Path	Path to the worker folder (auto-detected from Program Files or the UI directory; override stored in %AppData%/MaksIT/UScheduler/settings.json)
Service Status	Real-time status indicator (Running, Stopped, Starting, Stopping, Paused, Not Installed)
Register/Unregister	Install or remove the Windows service or systemd unit (UAC / polkit prompt, UI stays open)
Start/Stop	Control the service state (same in-app elevation)
Refresh	Update the current service status display
Reload Settings	Refresh shared configuration from %ProgramData%\MaksIT\UScheduler\settings.json

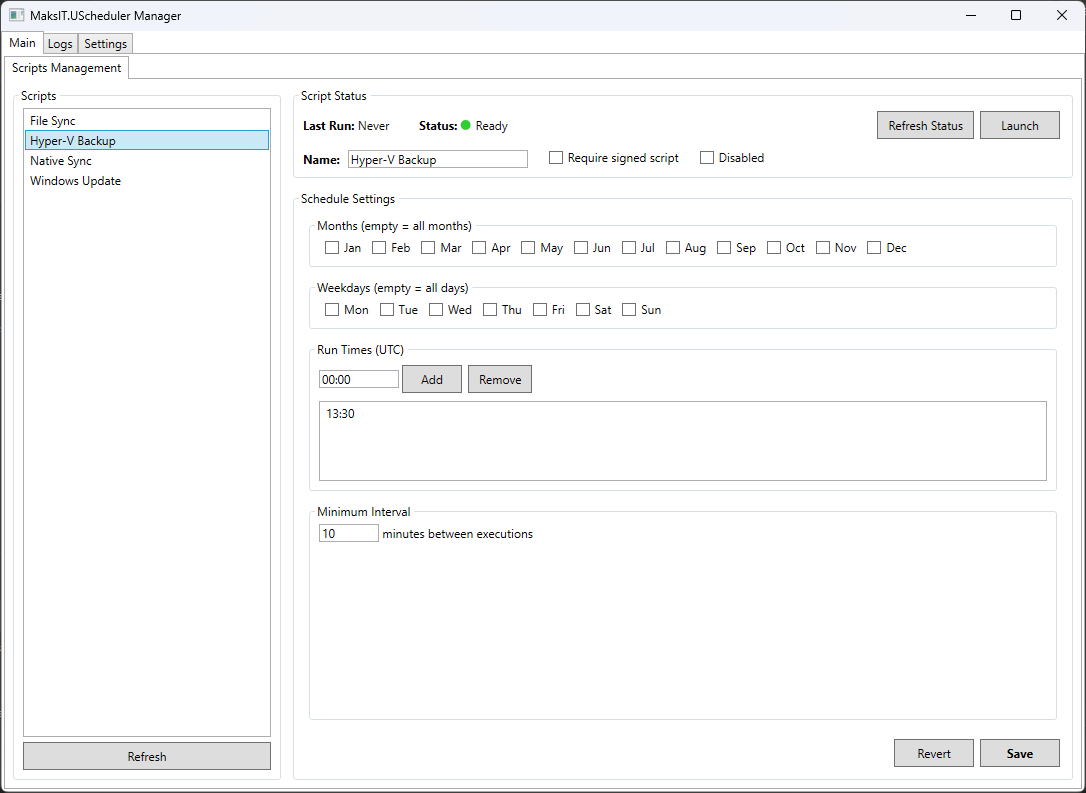

Main View — Schedule Management

The Main view allows you to manage script schedules and execution settings.

Script List Panel:

• Lists all PowerShell scripts configured in shared settings.json
• Each row shows a description and which hosts it supports
• Scripts that cannot run on this OS stay listed but are grayed out
• Select a script to view and edit its schedule

Script Configuration:

Setting	Description
Name	Display name for the script
Is Signed	Require script to be digitally signed (AllSigned policy)
Disabled	Skip this script during scheduled execution

Schedule Configuration:

Setting	Description
Run Month	Select specific months to run (empty = every month)
Run Weekday	Select specific days of the week (empty = every day)
Run Time	Add/remove specific execution times (HH:mm format)
Min Interval	Minimum minutes between executions (prevents duplicate runs)

Actions:

• Save — Persist schedule changes to scriptsettings.json
• Revert — Discard unsaved changes
• Launch — Execute the script immediately via its .bat file

Script Status:

• View lock file status (indicates if script is currently running)
• View last execution timestamp
• Remove stale lock files from crashed scripts

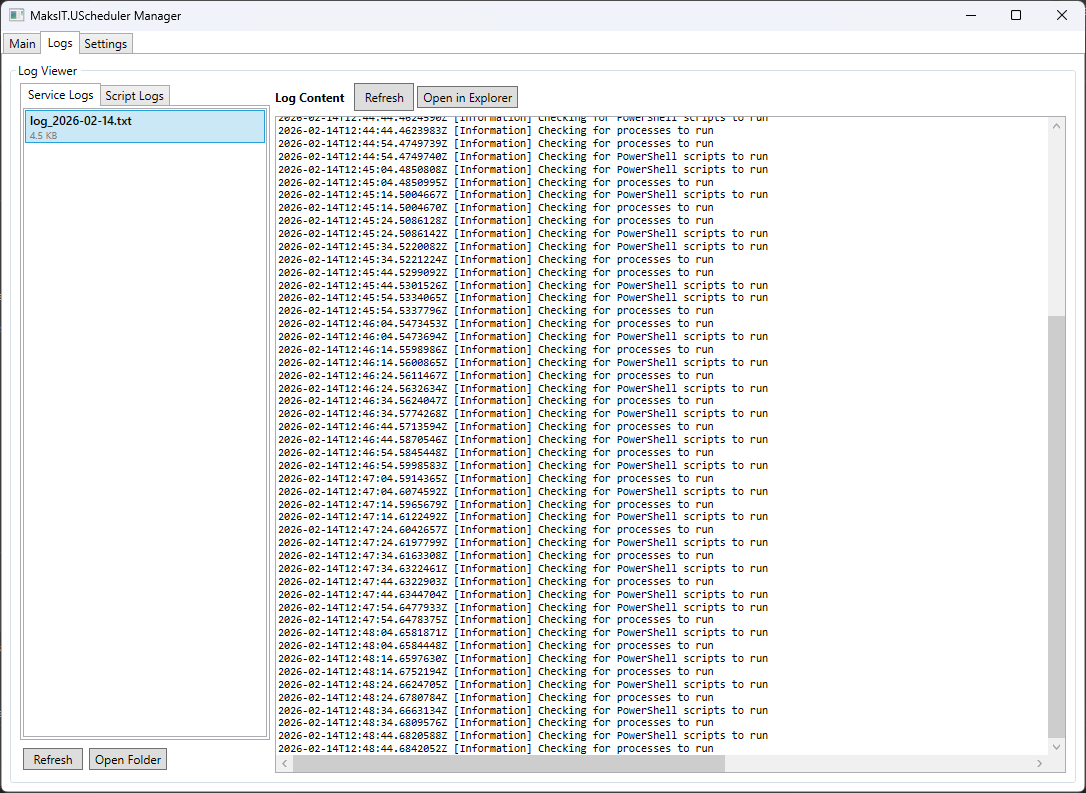

Service Logs View

Monitor the UScheduler service activity and troubleshoot issues.

Features:

• Browse service log files sorted by date
• View log content directly in the application
• Open log files in Windows Explorer
• Refresh logs to see latest entries

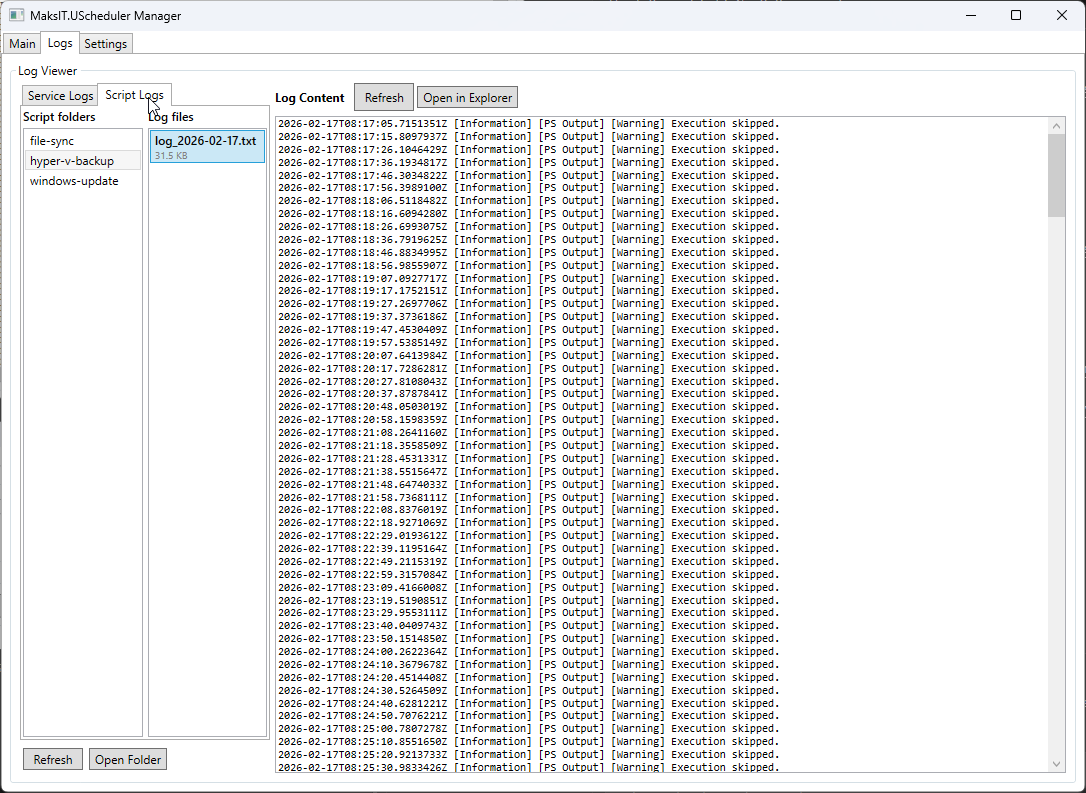

Script Logs View

View execution logs for individual scheduled scripts.

Features:

• Browse log folders organized by script name
• Select and view individual log files
• Track script execution history and errors
• Open logs in Explorer for external tools

Configuration

Machine-wide settings.json

Host logging (log levels, Event Log source) stays in shipped appsettings.json next to MaksIT.UScheduler.exe under Program Files. Schedule configuration is not written there — a leftover Configuration block is copied once into the machine-wide file:

%ProgramData%\MaksIT\UScheduler\settings.json

{
  "Configuration": {
    "ServiceName": "MaksIT.UScheduler",
    "LogDir": "C:\\MaksIT\\Logs",
    "ScriptsDir": "C:\\MaksIT\\Scripts",

    "Powershell": [
      { "Path": "File-Sync\\file-sync.ps1", "IsSigned": true, "Disabled": false },
      { "Path": "C:\\MaksIT\\Scripts\\AnotherScript.ps1", "IsSigned": false, "Disabled": true, "Platforms": ["Windows"], "Description": "Windows-only example" }
    ],

    "Processes": [
      { "Path": "C:\\Tools\\MyApp.exe", "Args": ["--option"], "RestartOnFailure": true, "Disabled": false }
    ]
  }
}

Note: ServiceName, LogDir, and ScriptsDir are optional. Defaults: "MaksIT.UScheduler", C:\MaksIT\Logs, and C:\MaksIT\Scripts.

Path Resolution

Paths can be either absolute or relative:

Path Type	Example	Resolved To
Absolute	C:\MaksIT\Scripts\backup.ps1	C:\MaksIT\Scripts\backup.ps1
Relative	File-Sync\file-sync.ps1	{ScriptsDir}\File-Sync\file-sync.ps1 (C:\MaksIT\Scripts by default)

Relative script paths are resolved against ScriptsDir. Relative process paths are still resolved against the worker's install directory.

Log Levels

The "Default": "Information" setting controls the minimum severity of messages that get logged. Available levels (from most to least verbose):

Level	Description
Trace	Most detailed, for debugging internals
Debug	Debugging information
Information	General operational events (recommended default)
Warning	Abnormal or unexpected events
Error	Errors and exceptions
Critical	Critical failures requiring immediate attention
None	Disables logging

PowerShell Scripts

Property	Type	Default	Description
Path	string	required	Path to .ps1 file (absolute or relative)
Name	string	optional	Display name in the UI
Description	string	optional	Short text under the name in the script list
Platforms	string[]	empty (all)	Windows and/or Linux. Empty = both. The worker skips scripts that do not match the host; the list grays them out.
IsSigned	bool	true	true enforces AllSigned, false runs unrestricted
Disabled	bool	false	true skips this script during execution

Processes

Property	Type	Default	Description
Path	string	required	Path to executable (absolute or relative)
Args	string[]	null	Command-line arguments
RestartOnFailure	bool	false	Restart process if it exits with non-zero code
Disabled	bool	false	true skips this process during execution

---

How It Works

Each script or process is executed in its own managed thread.

PowerShell Execution Parameters

myCommand.Parameters.Add(new CommandParameter("Automated", true));
myCommand.Parameters.Add(new CommandParameter("CurrentDateTimeUtc", DateTime.UtcNow.ToString("o")));

Inside the script:

param (
    [switch]$Automated,
    [string]$CurrentDateTimeUtc
)

Execution Model

Scripts and processes run in parallel using:

• PowerShell: RunspacePool (up to CPU core count concurrent runspaces)
• Processes: Task.WhenAll for concurrent process execution

Unified Scheduler Service
├── PSScriptBackgroundService (RunspacePool)
│   ├── ScriptA.ps1     ─┐
│   ├── ScriptB.ps1     ─┼─ Parallel execution
│   └── ScriptC.ps1     ─┘
└── ProcessBackgroundService (Task.WhenAll)
    ├── ProgramA.exe    ─┐
    ├── ProgramB.exe    ─┼─ Parallel execution
    └── ProgramC.exe    ─┘

• A failure in one script/process never stops the service or other components.
• The same script/process won't run twice concurrently (protected by "already running" check).
• Execution cycle repeats every 10 seconds.

---

Reusable Scheduler Module (SchedulerTemplate.psm1)

This module provides:

• Scheduling by:

  • Month
  • Weekday
  • Exact time(s)
  • Minimum interval

• Automatic lock file (no concurrent execution)

• Last-run file tracking

• Unified callback execution pattern

Exported Functions

Function	Description
Write-Log	Logging with timestamp, level (Info/Success/Warning/Error), and color support
Invoke-ScheduledExecution	Main scheduler — checks schedule, manages locks, runs callback
Get-CredentialFromEnvVar	Retrieves credentials from Base64-encoded machine environment variables
Test-UNCPath	Validates whether a path is a UNC path
Send-EmailNotification	Sends SMTP email with optional SSL and credential support

Module Version

The module exports $ModuleVersion and $ModuleDate for version tracking.

Example usage

param (
    [switch]$Automated,
    [string]$CurrentDateTimeUtc
)

Import-Module "$PSScriptRoot\..\SchedulerTemplate.psm1" -Force

$Config = @{
    RunMonth = @()
    RunWeekday = @()
    RunTime = @("22:52")
    MinIntervalMinutes = 10
}

function Start-BusinessLogic {
     Write-Log "Executing business logic..." -Automated:$Automated
}

Invoke-ScheduledExecution -Config $Config -Automated:$Automated -CurrentDateTimeUtc $CurrentDateTimeUtc -ScriptBlock {
    Start-BusinessLogic
}

Workflow for new scheduled scripts:

1. Copy template
2. Modify $Config
3. Implement Start-BusinessLogic
4. Add script to %ProgramData%\MaksIT\UScheduler\settings.json (or use the UI)

That’s it — the full scheduling engine is reused automatically.

---

Security

• Scripts run with AllSigned execution policy by default.
• Set IsSigned: false to use Unrestricted policy (not recommended for production).
• Scripts are auto-unblocked before execution (Zone.Identifier removed).
• Signature validation ensures only trusted scripts execute.

---

Logging

• Console logging — standard output
• File logging — written to LogDir (default: C:\MaksIT\Logs)
• Windows EventLog — events logged to Application log under MaksIT.UScheduler source
• All events (start, stop, crash, restart, error, skip) are logged

---

Testing

The project includes a comprehensive test suite using xUnit and Moq for unit testing.

Running Tests

Use the RepoUtils test engine (recommended):

.\utils\Invoke-TestEngine.bat

Or run tests directly:

# Run all tests
dotnet test src/MaksIT.UScheduler.Tests

# Run with verbose output
dotnet test src/MaksIT.UScheduler.Tests --verbosity normal

Code Coverage

Coverage badges in README.md are rewritten by the test engine (CoverageBadges with badgeFormat: shields). After changing tests or coverage, rerun:

.\utils\Invoke-TestEngine.bat

Commit the updated README shields.io badge URLs with the test or release work.

Test Structure

Test Class	Coverage
ConfigurationTests	Configuration POCOs and default values
ConfigurationFileServiceTests	Shared ProgramData settings.json seed/copy/save
HostDataDirectoriesTests	Seed script copy skips existing folders and files
ProcessBackgroundServiceTests	Process execution lifecycle and error handling
PSScriptBackgroundServiceTests	PowerShell script execution and signature validation

---

Contact

Maksym Sadovnychyy — MAKS-IT
Email: maksym.sadovnychyy@gmail.com

---

License

This project is licensed under the MIT License. See LICENSE.md for details.

---
